| Place of Origin | Dongguan, China |
| Brand Name | Yexin |
| Certification | ISO9001:2015 |
| Model Number | A81 |

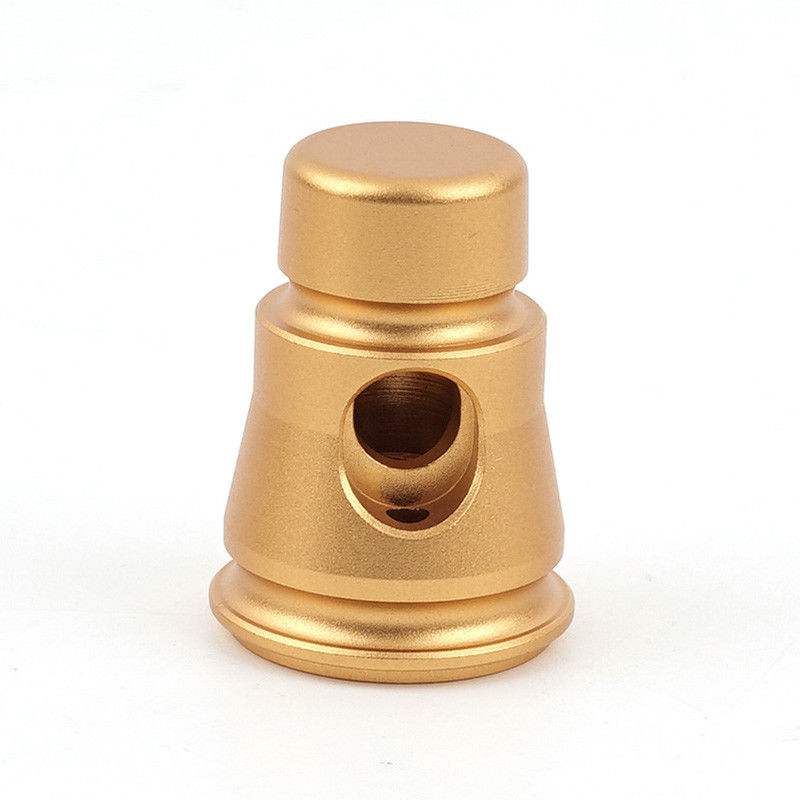

Aluminum CNC Lathe Turning Part CNC Machining Custom OEM Part CNC Machining
Service Stainless Steel CNC Parts
CNC turning is a machining process that involves cutting material to create round shapes,
typically using a CNC Lathe.
In this process, the workpiece is placed inside the lathe and rotates while a cutting tool removes
material until only the desired shape remains.
CNC turning is particularly well-suited for cylindrical parts and is usually performed using round
rod material.
However, square and hexagonal bar stock can also be used depending on the requirements.
The primary goal of CNC turning is to manufacture parts with shapes achievable by feeding a
cutter into a rotating bar of raw material.
It can also be employed to reduce the diameter of a workpiece to a specific dimension.
Lathe turning is commonly used for shaping metal or wood.
CNC lathes find applications in metalworking, woodworking, and metal spinning processes.
They produce precise round shapes, often with accurate outer diameter (OD) and inner
diameter (ID) dimensions.
Product Details
CNC turning machines are capable of cutting a wide range of materials, including aluminum,
bronze, copper, ceramics, plywood, various steel alloys, stone, wood, zinc, and various
engineering materials.
This versatility makes them an excellent choice for crafting prototypes during product
development. Furthermore, CNC milling allows for precise and rapid adjustments until the
desired final product is achieved.
| Common Materials | |
| Name | Description |
| Aluminum | High machinability and ductility, good strength-to-weight ratio. |
| Stainless steel | High tensile strength, corrosion and temperature resistant. |
| Mild steel | High machinability and weldability, high stiffness. |
| Brass | Low friction, excellent electrical conductivity, golden appearance. |
| Copper | Excellent thermal and electrical conductivity. |
| Titanium | Excellent strength to weight ratio, used in aerospace, automotive and medical industries. |
| POM | High stiffness, high accuracy, low friction, easy to machine. |
| ABS | Common thermoplastic, impact resistant, easy to machine. |
Our tolerances for machined parts are typically within +0.005"/-0.005" for most metal geometries,
and within +/- 0.010" for plastics.
However, tolerances may vary for larger parts, especially when maintaining flatness over extensive
sections post-heat treatment.
| CNC Turning Tolerances | ||
| Limits for nominal size | Plastics | Metals |
| 0.5mm* to 3mm | ±0.1mm | ±0.05mm |
| Over 3mm to 6mm | ±0.1mm | ±0.05mm |
| Over 6mm to 30mm | ±0.2mm | ±0.10mm |
| Over 30mm to 120mm | ±0.3mm | ±0.15mm |
| Over 120mm to 400mm | ±0.5mm | ±0.20mm |
| Over 400mm to 1000mm | ±0.8mm | ±0.30mm |
| Over 1000mm to 2000mm | ±1.2mm | ±0.50mm |
| Over 2000mm to 4000mm | ±2.0mm | |
| *Please clearly indicate tolerances for nominal sizes below 0.5mm on your technical drawing. | ||
Typical Applications of CNC Turning
CNC machining finds extensive applications across various industries.
It is prevalent in aerospace, automotive, consumer electronics, robotics, agriculture,
and numerous sectors that heavily rely on metal components.
Furthermore, CNC machining is widely employed in the medical device industry, household
products manufacturing, energy sector, oil and gas industry, and various consumer-oriented
applications.
It stands as one of the most prevalent and versatile manufacturing processes globally.
Company Profile
FAQ's
1. Geometric Possibilities in CNC Turning
CNC turning machining is versatile and capable of producing a wide range of geometric designs,
from the simplest to the most complex, often with additional features incorporated.
Some common part shapes that can be readily achieved using a standard
CNC turning center include:
1. Straight cylindrical shapes
2. Tapered shapes such as a cone
3. Contoured shapes such as a chess pawn
4. Shapes with threaded holes
5. Shapes with grooves such as for o-rings
6. Knurled shapes such as for handles
7. Chamfered shapes
8. Shouldered shapes
2. Advantages of CNC Turning
CNC turning offers several advantages, making it a valuable machining process:
1. Versatility: CNC turning centers can be equipped with rotating cutters like end mills and
drills, expanding their capabilities to handle asymmetrical features and various machining
tasks. This versatility increases production efficiency and cost-effectiveness.
2. Speed and Efficiency: CNC turning enables faster production, reducing lead times and
increasing overall efficiency. The automation and precision of CNC systems contribute to
streamlined operations.
3. Radial Symmetry: Achieving radial symmetry in parts is relatively easy with CNC turning.
This capability simplifies the machining of cylindrical and symmetrical components.
4. High Precision: Mounting the workpiece in a chuck allows for high precision during CNC
turning operations. This results in accurate and consistent part dimensions.
5. Superior Surface Finish: CNC turning often produces a superior surface finish on workpieces,
enhancing their overall quality and appearance.
6. Safety: CNC turning offers a safer machining environment compared to manual operations,
as it minimizes the need for direct human involvement in the machining process.
In summary, CNC turning provides versatility, speed, precision, and superior surface finish,
making it a preferred choice for various machining needs.
