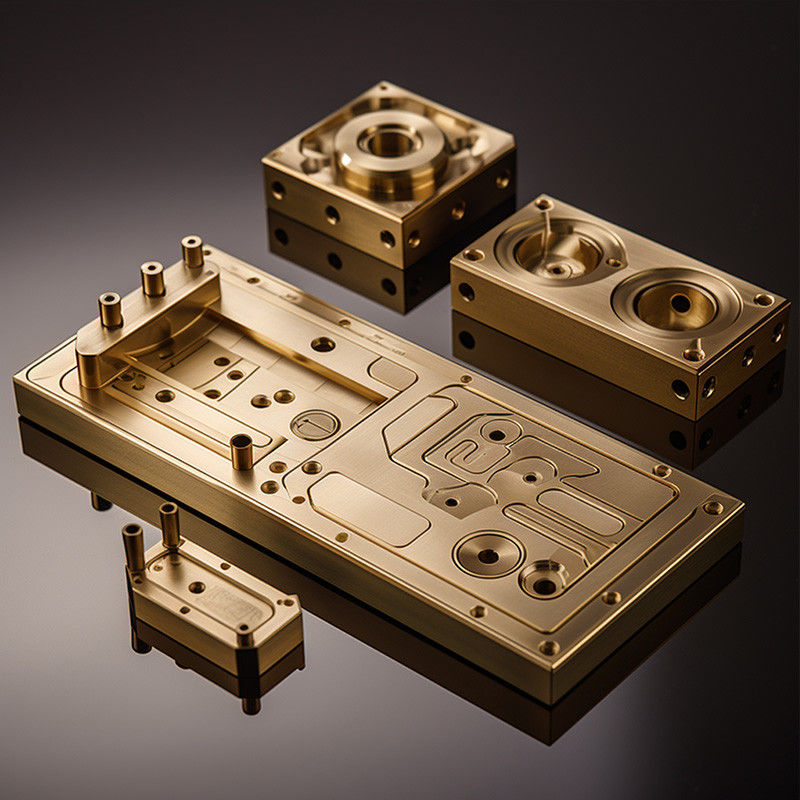

Brass Machining CNC Parts Custom Milling CNC Lathe Parts Machining CNC Service
Custom CNC machining is a widely embraced subtractive manufacturing technique,
highly regarded for its ability to craft tailor-made metal and plastic components, suitable
for both prototyping and production requirements.
By harnessing CAD (computer-aided design) modeling software in tandem with G-code,
CNC milling and CNC turning machines efficiently remove material from solid workpieces
with remarkable precision and efficiency.
CNC machines excel in producing robust parts characterized by strict tolerances and a wide
array of exceptional material properties, encompassing both mechanical and chemical
attributes.
Our customized CNC machining service is ideally suited for individual projects and
medium-volume production runs, leveraging automation and a high level of reproducibility.
Product Details
Brass is a metal alloy known for its low friction properties, exceptional electrical conductivity,
and distinctive golden appearance.
This material offers good machinability, making it suitable for a wide range of applications that
demand low friction and high electrical conductivity.
| Common Brass Materials | |
| No. | Properties |
| Brass Cz121 | Brass Cz121/C360 (CNC) is a highly machinable alloy with good tensile strength and natural corrosion resistance. Ideal for parts that require low friction. |
| Brass C360 | Brass C360 (CNC) is highly machinable alloy with good tensile strength and natural corrosion resistance. Ideal for parts that require low friction. |
Brass Finishing and Post-Processing
360 Brass has a shiny yellow finish that varies depending on surface roughness.
It can be hand-polished to increase its sheen, or media blasted for more of a matte texture.
| Name | Machining Marks |
| As machined | Visible, light surface scratches |
| Smooth machining | Visible, light surface scratches |
| Fine machining | Slightly visible |
| Polishing | Removed on primary surfaces |
| Bead blasting | Removed for non-cosmetic, removed on primary surfaces for cosmetic |
| Brushing | Reduced for non-cosmetic, removed on primary surfaces for cosmetic |
| Powder coating | Removed |
| Black oxide | Visible |
Applications of CNC Brass Parts
CNC machining finds extensive applications across various industries.
It is prevalent in aerospace, automotive, consumer electronics, robotics, agriculture,
and numerous sectors that heavily rely on metal components.
Furthermore, CNC machining is widely employed in the medical device industry, household
products manufacturing, energy sector, oil and gas industry, and various consumer-oriented
applications.
It stands as one of the most prevalent and versatile manufacturing processes globally.
Company Profile
FAQ's
1. What's the general surface texture of CNC milled and turned parts?
Typically, as-machined milled parts exhibit a surface roughness of approximately 3.2μm
(with the potential to reach 1.6μm for newer machines).
In contrast, for turned parts, achieving a surface roughness as low as 0.8μm is possible,
ensuring that machining speed adjustments are not always necessary.
2. Achievable Tolerances in CNC Machining
Our standard tolerances for CNC machining are 0.05 microns, suitable for most commercial
and industrial applications.
For projects with more stringent tolerance requirements, please consult with us to discuss your
specific needs.
3. Cost of CNC Machining
The cost of CNC machining a part is influenced by various factors, including:
1. Material: The choice of material affects cost, with materials like Inconel being more
expensive due to increased tool wear and slower machining.
2. Complexity: Complex features drive up costs, as machining intricate surface shapes is
more time-consuming.
3. Tolerances: Tight dimensional tolerances increase expenses; specifying them unnecessarily
on non-critical features can inflate costs.
4. Surface Finish: Achieving mirror finishes demands specialized tools and strategies, prolonging
machining time and costs.
5. Quantity: Low-volume production costs more per part due to initial setup and programming
costs spread over fewer pieces.
4. Delivery Time and Quotation Turnaround
Our delivery time and quotation process are influenced by the complexity of your project.
For low-complexity parts, expect a lead time of 2-3 days. As complexity increases, the lead
time can range from 2-5 days. High-complexity parts may require a lead time of 5-15 days.
Quotation turnaround time varies based on complexity as well. For straightforward designs,
we can provide a quote within 1 business day or even faster. However, for more intricate
projects, the quoting process may take 3 or more business days.
If you have a design that needs assessment and a quote from our team, please don't hesitate
to contact us.
