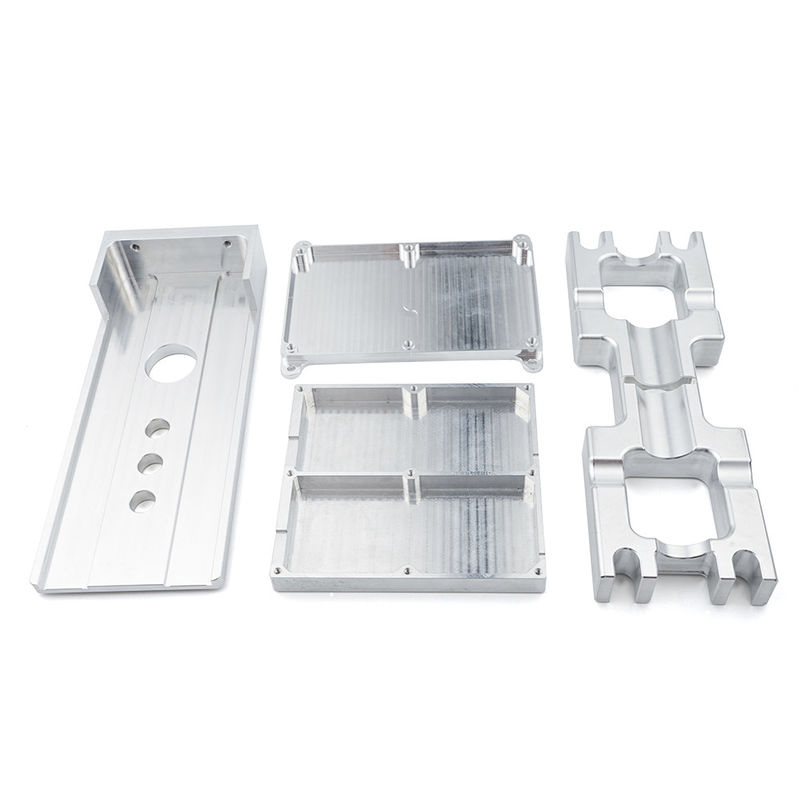

Small MOQ Custom CNC Aluminum Parts CNC Lathe Parts Processing OEM
Aluminum CNC Machining Service Milling Parts
Aluminum is a highly suitable metal for CNC machining due to its favorable characteristics.
It is lightweight, malleable, ductile, and offers excellent durability, making it an ideal choice
for various applications. During the CNC machining process, raw aluminum material is
gradually shaped into the desired form or object.
This precision machining is achieved using CNC (Computerized Numerical Control) machines,
which can fabricate nearly any three-dimensional design created through CAD
(Computer-Aided Design) software.
Product Details
Aluminum is one of the most widely used metals globally, valued for its exceptional
strength-to-weight ratio, affordability, and recyclability.
| Common Aluminum Materials | |
| No. | Properties |
| Aluminum 6061-T6 | Aluminum 6061 (CNC) is the most popular aluminum alloy. It has good strength-to-weight ratio, excellent machinability and natural corrosion resistance. |
| Aluminum 7075-T6 | Aluminum 7075-T6 (CNC) is an aerospace-grade material with excellent strength-to-weight ratio and strength and hardness comparable to steels. |
| Aluminum 6060 | Alloy 6060 offers good strength, relatively good corrosion resistance and is suitable for decorative anodizing. |
| Aluminum 6082 | Aluminum 6082 (CNC) has very similar composition and properties to 6061, with slightly higher tensile strength. Compliant with British Standards. |
| Aluminum 5083 | Aluminum 5083 (CNC) is a strain hardening aluminum alloy with excellent corrosion resistance. Suitable for marine applications. Can be welded. |
| Aluminum 6063 | Aluminum 6063 has good mechanical properties and can be heat treated. Suitable for aerospace applications. Can be welded. |
| Aluminum 5052 | Aluminum 5052 is a strain hardening aluminum alloy with excellent corrosion resistance. Suitable for marine applications. Can be welded. |
| Aluminum 2024 | Aluminum 2024 is a high-strength alloy with excellent fatigue resistance. Suitable for aerospace applications. |
| Aluminum 7050 | Aluminum 7050 has excellent mechanical properties with good ductility, high strength, toughness and good resistance to fatigue. Suitable for aerospace applications. |
Aluminum Finishing and Post-Processing
Aluminum can also be anodized for additional surface protection and aesthetic finishes.
| Name | Machining Marks |
| Anodizing Type II | Reduced for non-cosmetic, removed on primary surfaces for cosmetic |
| Anodizing Type III | Visible under anodizing |
| Chromate conversion coating | Visible |
| Electroless nickel plating | Reduced but visible |
| As machined | Visible, light surface scratches |
| Smooth machining | Visible, light surface scratches |
| Fine machining | Slightly visible |
| Polishing | Removed on primary surfaces |
| Bead blasting | Removed for non-cosmetic, removed on primary surfaces for cosmetic |
| Brushing | Reduced for non-cosmetic, removed on primary surfaces for cosmetic |
| Powder coating | Removed |
Applications of CNC Aluminum Parts
Our aluminum parts are precisely tailored to match the specific needs of various applications,
such as automotive precision components, precision motor parts, medical instrument components,
power tool parts, machine components, high-end electronic devices, home appliance parts,
and more.
Company Profile
FAQ's
1. What size of fillets are added when no specific fillet is specified by the 3D model
or drawing?
When specific fillet dimensions are not provided, we will apply fillet radii that facilitate machining,
as determined by our machinists' judgment.
If you require a particular fillet radius, please ensure it is specified. In the absence of specific
details, typical internal vertical edge radii may exceed 1/3 of the depth, while internal horizontal
edges can be either left sharp or have a radius ranging from 0.5mm to 1mm, depending on the
machining requirements.
2. What industries do you typically work in? Who are your typical customers?
It would be simpler to mention the industries we have not served! Our client base encompasses
heavy equipment manufacturers, various commercial enterprises, as well as firms in the industrial,
transportation, medical, and consumer sectors, among many others.
Although our clientele is widespread across the United States, Europe, and globally, they all share
a common requirement: precision parts manufactured to specifications, delivered promptly, and
within budget constraints.
3. Do you offer other services, like finishing, assembly, packaging, and logistical support?
Absolutely, we offer a comprehensive range of services to efficiently and cost-effectively take your
project from inception to completion.
Our capabilities encompass anodizing, plating, grinding, finishing, assembly, warehousing, packaging,
and just-in-time delivery.
Our objective is to offer a seamless, hassle-free production process that optimizes time and cost,
allowing you to concentrate on your core business activities.
