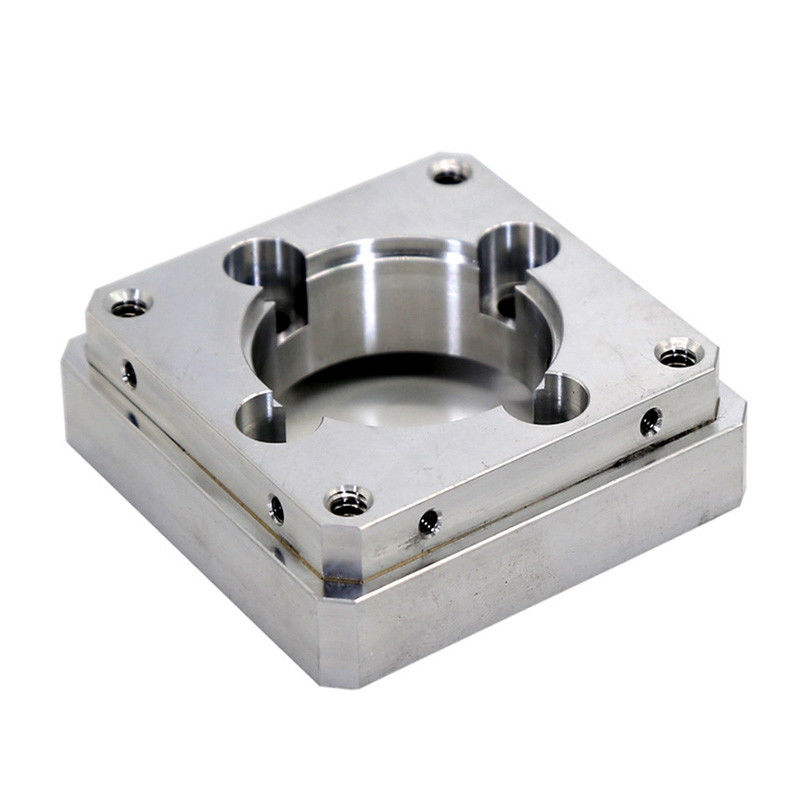

CNC Milling Service
>
|
|
| Place of Origin | Dongguan, China |
| Brand Name | Yexin |
| Certification | ISO9001:2015 |
| Model Number | A127-1 |
The most suitable application for CNC machining lies in one-off manufacturing endeavors and in
low-to-medium volume production scenarios, typically ranging from several hundred to 1000 parts.
Opting for CNC machining is particularly advantageous when aiming for cost-competitive metal
prototypes. Additionally, the technology shines in situations where the parts necessitate extremely
tight tolerances for precision.
Product Details
CNC machining machines possess the versatility to cut through an extensive array of materials,
encompassing aluminum, bronze, copper, ceramics, plywood, diverse steel types, stone, wood,
zinc, and various engineering materials.
This broad range of capabilities positions CNC machining as an optimal solution for prototype
creation in product development. It facilitates the ability to make accurate and swift adjustments
until achieving satisfaction with the final product.
| Common Materials for CNC Machining | |
| Material | Properties |
| Aluminum | 2024: Good fatigue resistance and strength; excellent toughness at moderate to high strength levels; improved fracture toughness |
| 6061: Excellent machinability, low cost, and versatility | |
| 7075: High strength, hardness, low weight, and heat tolerance | |
| Brass | Versatile and highly attractive copper/zinc alloy with warm yellow color accommodates severe forming/drawing |
| Copper | High ductility and high electrical and thermal conductivity; develops attractive blue-green surface patina over time |
| Stainless Steel | Excellent machinability and outstanding uniformity; good workability and weldability, high ductility and formability |
| Steel Alloy | Mix of chromium, molybdenum, and manganese yields toughness, good torsional and fatigue strength |
| Steel Mild Low Carbon | High machinability and weldability, high stiffness; good mechanical properties, machinability, and weldability at low cost |
| Titanium | Excellent strength to weight ratio, used in aerospace, automotive, and medical industries |
| ABS | Excellent impact resistance, good mechanical properties, susceptible to solvents |
| Nylon | Excellent mechanical properties, high toughness, poor moisture resistance |
| POM | High stiffness, excellent thermal & electrical properties, relatively brittle |
| CNC Milling Tolerances | ||
| Limits for nominal size | Plastics | Metals |
| 0.5mm* to 3mm | ±0.1mm | ±0.05mm |
| Over 3mm to 6mm | ±0.1mm | ±0.05mm |
| Over 6mm to 30mm | ±0.2mm | ±0.10mm |
| Over 30mm to 120mm | ±0.3mm | ±0.15mm |
| Over 120mm to 400mm | ±0.5mm | ±0.20mm |
| Over 400mm to 1000mm | ±0.8mm | ±0.30mm |
| Over 1000mm to 2000mm | ±1.2mm | ±0.50mm |
| Over 2000mm to 4000mm | ±2.0mm | |
|
*Please clearly indicate tolerances for nominal sizes below 0.5mm on your technical drawing. |
||
CNC Machining Applications
CNC milling machines find extensive application in the contemporary manufacturing landscape,
shaping materials ranging from glass and metal to plastic, wood, and custom-designed
components. Machinists proficient in CNC machining are instrumental in fabricating prototypes
and end products for diverse sectors like aerospace, automotive, hardware startups, manufacturing,
medical devices, robotics, and other burgeoning industries.
The precision and versatility of CNC milling machines contribute significantly to the evolution of
manufacturing technologies.
Company Profile
FAQ's
1. How can I ensure my design is confidential?
We prioritize the confidentiality of your design, and to reinforce this commitment, we are willing
to enter into a Non-disclosure Agreement (NDA) with our customers. This agreement can be
established prior to the quoting phase or when placing an order, ensuring a secure environment
for your proprietary information.
2. How long does a quotation take?
Under normal circumstances, we endeavor to respond to Requests for Quotation (RFQ) within a
couple of days from the time of submission. Should there be any unforeseen delays in the
quotation process, we commit to informing you as soon as possible.
3. What tolerances can achieve?
Tolerances are not universally defined and vary based on factors such as part size, design geometry,
the number and size of features, material selection, surface finish, and the manufacturing process.
After order confirmation, we conduct a comprehensive Design for Manufacturing review to identify
areas for potential modification to enhance manufacturability. It is advantageous if you can specify
critical tolerance areas in your design, allowing for adjustments to optimize production time and
costs.
General tolerance guidelines are provided for CNC machining in metal and plastic, plastic injection
molding, CNC metals and plastic injection molding materials, metal 3D printing (+/- 0.5mm), and
an expected shrinkage rate of +/- 0.15% for vacuum casting. Clear specifications in the 2D drawings
are essential for precise adherence to manufacturing and technical requirements.
4. Can passivate my parts?
Passivation is a treatment designed to change the surface chemistry of select metals. We offer
passivation services to provide corrosion protection, improve durability, enhance aesthetics, and more.
