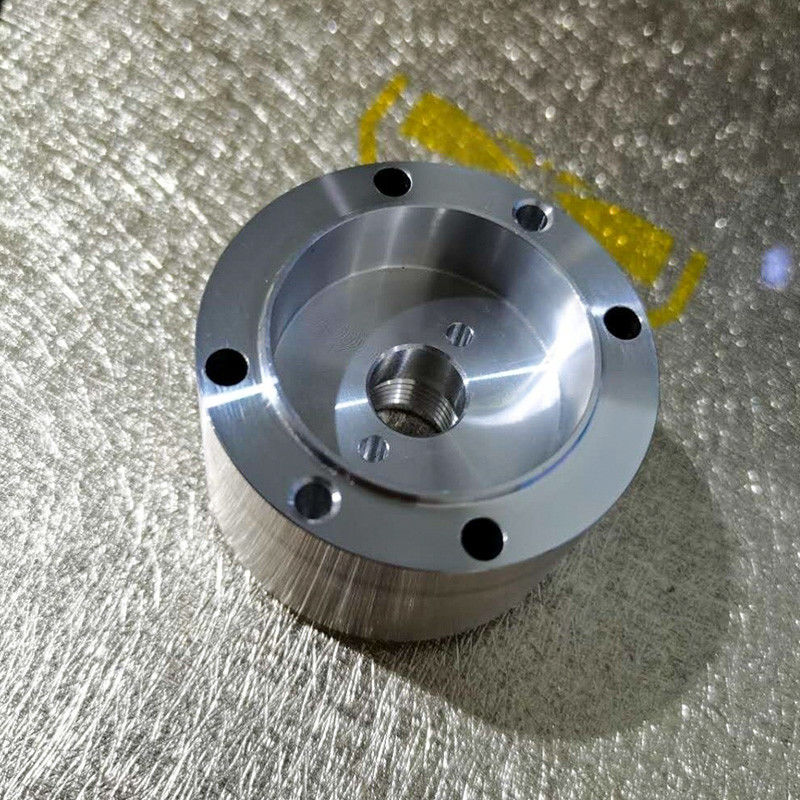

CNC Stainless Steel Parts
>
|
|
| Place of Origin | Dongguan, China |
| Brand Name | Yexin |
| Certification | ISO9001:2015 |
| Model Number | A155-1 |
Our CNC machining capabilities cover the spectrum, allowing us to fabricate parts of varying
complexities, from straightforward "as machined" workholdings to intricate geometries.
Operating an extensive array of CNC mills and turning centers, we can also incorporate EDM
and grinders based on your requirements. Precision is our hallmark, with tolerances reaching
as low as 0.05 mm (0.0020 in), and our efficient processes ensure lead times starting at just
one business day.
Product Details
Stainless steel is highly resistant to corrosion and rust, making it suitable for situations
where a part may be exposed to the elements for a long period of time.
Stainless steel is also fairly malleable and ductile.
| Common Stainless Steel Materials | |
| No. | Properties |
| Stainless steel 304/304L | The most common alloy and is known for its pristine surface finish. It has significantly higher corrosion and oxidation resistance. Typically used in the manufacture of sensor parts, shafts, machinery parts, medical parts, and more. |
| Stainless steel 316/316L | It is slightly higher levels of chromium and nickel that exhibits improved heat tolerance, resistance to creep and pitting, and excellent tensile strength. Typically used in the manufacture of sensor, chemical & pharmaceutical equipment parts, and more. |
| Stainless steel 303 | It is a non-magnetic, austenitic stainless steel with good resistance to mildly corrosive atmospheres, but significantly less than 304. Typically used in the manufacture of screw, gears, fittings, bushings, shaft, and more. |
| Stainless steel 420 | It is a martensitic stainless steel with good corrosion resistance as well as strength and hardness. It is capable of being heat treated to a hardness of HRC 51 minimum. Typically used in the manufacture of pivots, cams, pump shafts, surgical instrument parts, valve components, and more. |
| Stainless steel 440C | It is a martensitic stainless steel, and is the highest carbon content from 400 stainless steel series. It is usually heat treated to reach hardness of 58 - 60 HRC. Typically used in the manufacture of valve seats, piston, shaft, and more. |
| Stainless steel 430 | It is a non-hardenable ferritic stainless steel with excellent finish quality. It has good corrosion resistance with good formability and ductility. Typically used in the manufacture of fittings, flanges fasteners, piston, and more. |
| Stainless steel 430FR | It is a free-machining solenoid quality alloy, ideal for parts that require corrosion resistance and high electrical resistivity. It has excellent corrosion resistance in fresh water, gaseous, moderately acidic, and low chlorine environments. |
| Stainless steel 630 | It is commonly referred to as 17-4 and is a precipitation-hardening martensitic stainless steel that offers superior corrosion resistance. It is magnetic, readily welded. Typically used in the manufacture of sensor housing, valve, pump shaft, and more. |
Stainless Steel Finishing and Post-Processing
We specialize in the production of custom-made products and offer surface treatment services
tailored to meet our customers' specific requirements and industry standards.
Our comprehensive solutions are both efficient and cost-effective, making us a one-stop
destination with the capacity and capability to provide integrated services.
| Name | Can be Applied with |
| Electropolishing | — |
| Electroless nickel plating | Media Blasting, Tumbling |
| Media Blasting | All post processes except Electropolish and Powdercoat |
| Nickel Plating | Media Blasting, Tumbling |
| Passivation | Black Oxide, Electroless Nickel Plating, Zinc Plating, Tumbling, Media Blasting |
| Tumbling | All post processes except Electropolish and Powdercoat |
| Zinc Plating | Media Blasting, Tumbling, Passivation |
| Powder coating | — |
| Black oxide | Media Blasting, Tumbling, Passivation |
Applications of Stainless Steel Parts
CNC turning services are indispensable in several key industries, with a significant impact on
transportation sectors like aerospace, automotive, mass transit, rail and locomotive, military,
and trucking.
Within these realms, CNC machines are instrumental in crafting essential transportation equipment,
ranging from headnuts and gear blanks to bearing blocks, levers, axles, and rotors.
In the construction industry, CNC machines are harnessed to produce robust bolts and screws,
crafted from materials like stainless steel and aluminum, crucial for handling heavy-duty applications.
Furthermore, CNC turning services are pivotal in the manufacturing of diverse auto parts,
encompassing engine components like cylinder heads, connecting rods, and camshafts, transmission
parts including shafts and rings, as well as suspension components like sway bars, control arms,
and tie rod ends.
The aviation sector also benefits significantly from CNC turned parts, utilizing them for the
customization and production of probes, joint connectors, fasteners, and engine and aircraft
components, often opting for titanium due to its resilience to extreme temperatures.
Company Profile
FAQ's
1. How much do CNC machining materials cost?
The multitude of materials available for CNC machining introduces a range of costs, influenced
by the unique properties and characteristics of each material. In the realm of metal parts,
Aluminum 6061 is a standout for its economical pricing.
If cost efficiency is a priority, ABS takes the lead as the most budget-friendly option.
Importantly, the ease of machining is a key factor impacting costs. Stainless steel, known for
its hardness in comparison to aluminum, presents higher machining complexities, contributing
to an overall increase in costs.
2. How long does delivery time and quotation take?
The lead time for parts is contingent on their complexity. Parts with low complexity typically boast
a lead time of 2-3 days, while moderate complexity extends the lead time to 2-5 days.
High-complexity parts may require a lead time ranging from 5 to 15 days.
Quoting time is influenced by design complexity, with a range of 1 business day (or faster) for
simpler designs to 3+ business days for more intricate ones.
If you have a design awaiting assessment and quoting, feel free to get in touch with our team.
3. Can I use my own material for production?
You have the flexibility to use your own material for production, as long as it meets the requirements
of our machine capabilities.
4. How do I know my design will be kept confidential?
We prioritize the confidentiality of your design. Our commitment to this is solidified through the
signing and adherence to any non-disclosure or confidentiality agreement.
Moreover, our factory strictly enforces a policy that prohibits the capture of photographs of a
customer's product without explicit permission.
Our longstanding reputation is based on years of handling a diverse range of unique designs,
with an unwavering commitment to preventing the disclosure of proprietary information to any
third party.
