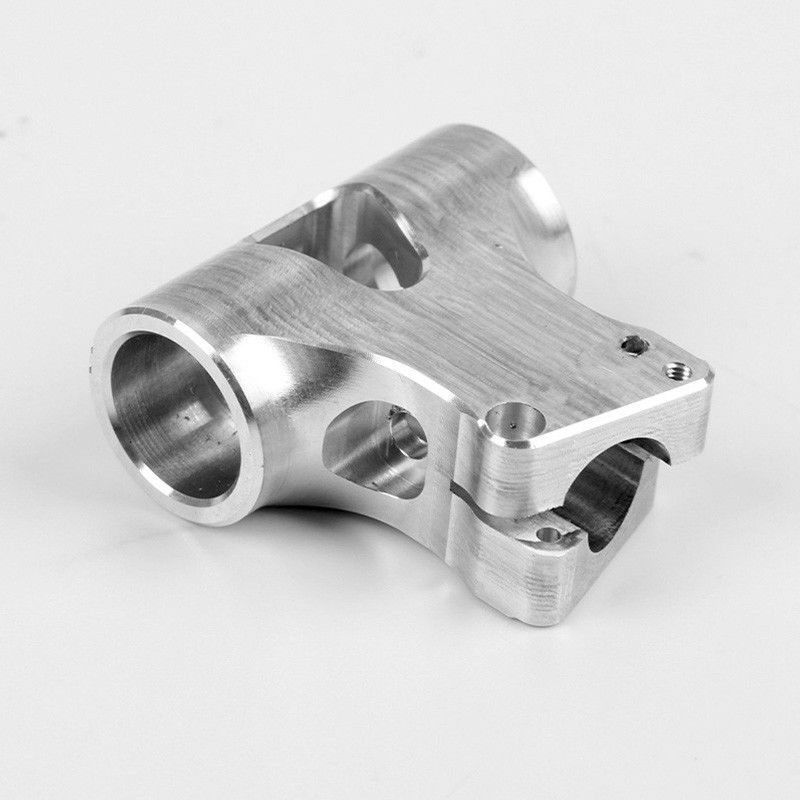

CNC Machined Parts
>
|
|
| Place of Origin | Dongguan, China |
| Brand Name | Yexin |
| Certification | ISO9001:2015 |
| Model Number | A154-3 |
Utilizing computer numerical control, or CNC, machining is a widely adopted manufacturing
technique that relies on automated, high-speed cutting tools to fashion designs from metal
or plastic stock.
Common CNC machines include 3-axis, 4-axis, and 5-axis milling machines, lathes, and routers.
The manner in which CNC parts are cut can vary, with scenarios where the workpiece remains
fixed while the tool moves, the tool remains stationary while the workpiece is rotated and moved,
or both the cutting tool and workpiece move simultaneously.
Product Details
CNC milling machines are capable of cutting a wide range of materials, including aluminum,
bronze, copper, ceramics, plywood, various steel alloys, stone, wood, zinc, and various
engineering materials.
This versatility makes them an excellent choice for crafting prototypes during product development.
Furthermore, CNC milling allows for precise and rapid adjustments until the desired final product
is achieved.
| Common Materials | |
| Name | Description |
|
Aluminum |
High machinability and ductility, good strength-to-weight ratio. |
|
Stainless steel |
High tensile strength, corrosion and temperature resistant. |
|
Mild steel |
High machinability and weldability, high stiffness. |
|
Brass |
Low friction, excellent electrical conductivity, golden appearance. |
|
Copper |
Excellent thermal and electrical conductivity. |
|
Titanium |
Excellent strength to weight ratio, used in aerospace, automotive and medical industries. |
|
ABS |
Common thermoplastic, impact resistant, easy to machine. |
| Nylon | Excellent mechanical properties, thermal, chemical and abrasion resistant. |
| PEEK | High-performance thermoplastic, very high strength, thermal and chemical resistant. |
| Surface Finishes | ||
| Name | Applicable to | Machining marks |
| As machined | Metals, Plastics | Visible, light surface scratches |
| Smooth machining | ||
| Fine machining | Metals | Slightly visible |
| Polishing | Metals | Removed on primary surfaces |
| Bead blasting | Metals | Removed for non-cosmetic, removed on primary surfaces for cosmetic |
| Brushing | Metals | |
| Anodizing Type II | Aluminum | |
| Anodizing Type III | Aluminum | Visible under anodizing |
| Black oxide | Copper, Stainless steel, Alloy steel, Tool steel, Mild steel | Visible |
| Powder coating | Metals | Removed |
| Brushed + electropolishing | Stainless steel | Removed on Primary surfaces |
Specialist Industries
CNC milling stands as a cornerstone in manufacturing, offering efficiency, precision, and the
elimination of manual labor. Machine shops play a critical role in providing essential services for
prototypes and full production runs.
The electronics industry heavily relies on CNC machines to manufacture components like electronic
enclosures and circuit supports. In the commercial sector, CNC cutting heads contribute to the
cost-effective production of various parts, aiding companies in reducing production costs and saving
time.
The oil and gas industry utilizes CNC machines extensively for the production of components such
as drill bits, cylinders, pins, rods, and valves. The medical industry benefits from CNC milling in
creating a wide range of components, from implants to medical devices.
The aerospace industry, with its constant need for precision, embraces CNC machined parts for
crafting complex and customized components integral to aerospace equipment.
Company Profile
FAQ's
1. What size of fillets are added when no specific fillet is specified by the 3D model
or drawing?
In cases where no specific fillet radius is specified in the 3D model or drawing, fillet radii will be
added by the machinist based on their judgment to enhance machining ease.
To ensure a desired fillet radius, specific details should be provided. For a general understanding,
internal vertical edge radii might surpass 1/3 of the depth, and internal horizontal edges may
either be maintained sharp or incorporate a radius within the range of 0.5mm to 1mm.
2. How do I know my design will be kept confidential?
We prioritize the confidentiality of your design. Our commitment to this is solidified through the
signing and adherence to any non-disclosure or confidentiality agreement.
Moreover, our factory strictly enforces a policy that prohibits the capture of photographs of a
customer's product without explicit permission. Our longstanding reputation is based on years of
handling a diverse range of unique designs, with an unwavering commitment to preventing the
disclosure of proprietary information to any third party.
3. What tolerances can achieve?
Tolerance specifications are not one-size-fits-all and are influenced by factors like part size,
design geometry, the number and size of features, material properties, surface finish, and the
manufacturing process. Upon order confirmation, a Design for Manufacturing review is conducted
to pinpoint areas for potential modification to enhance manufacturability.
Clearly indicating critical tolerance areas in your design is beneficial, allowing for adjustments to
streamline production time and costs. General tolerance guidelines are available for CNC machining
in metal and plastic, plastic injection molding, CNC metals and plastic injection molding materials,
metal 3D printing (+/- 0.5mm), and an expected shrinkage rate of +/- 0.15% for vacuum casting.
It is imperative to specify all manufacturing and technical requirements clearly in the 2D drawings
for accurate adherence.
